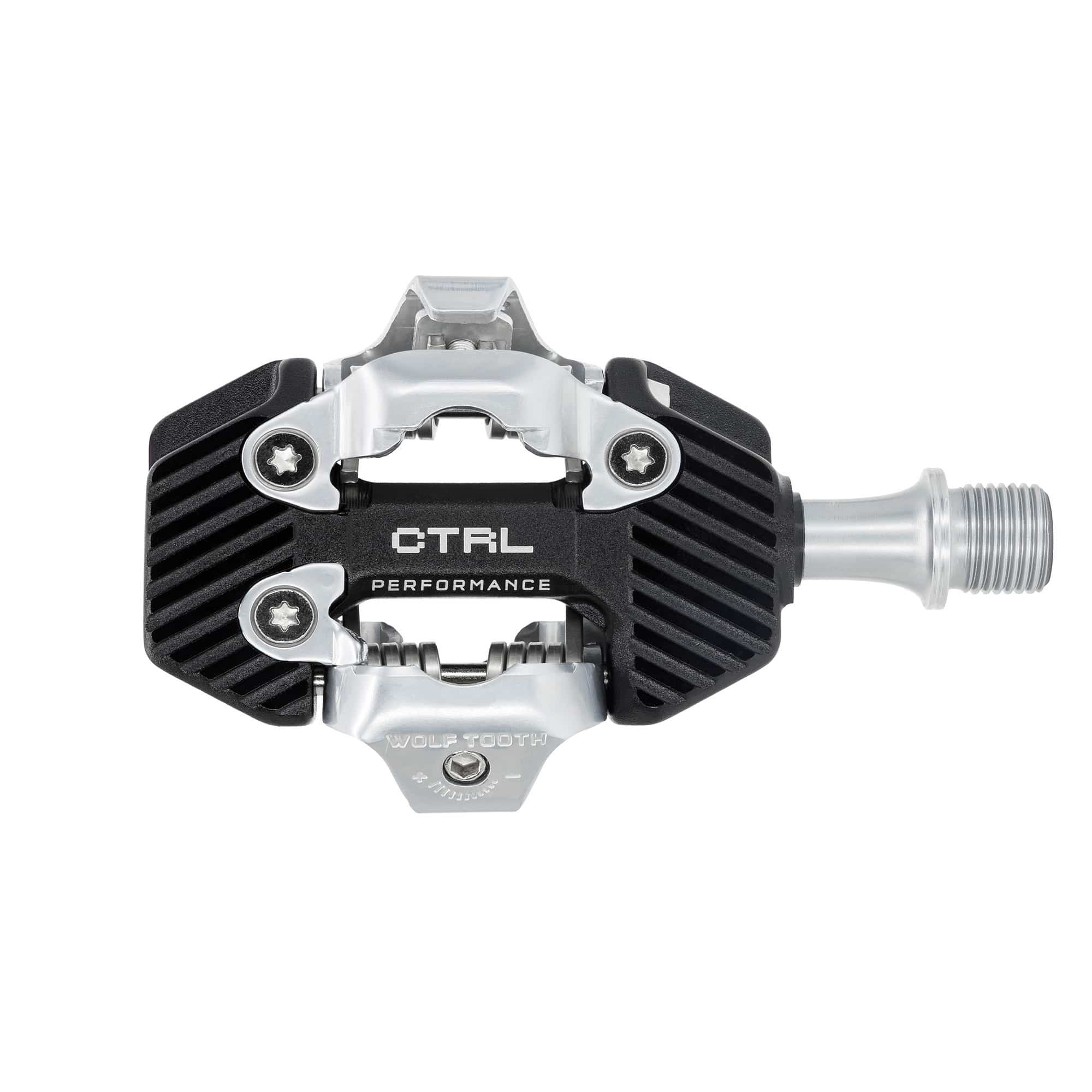

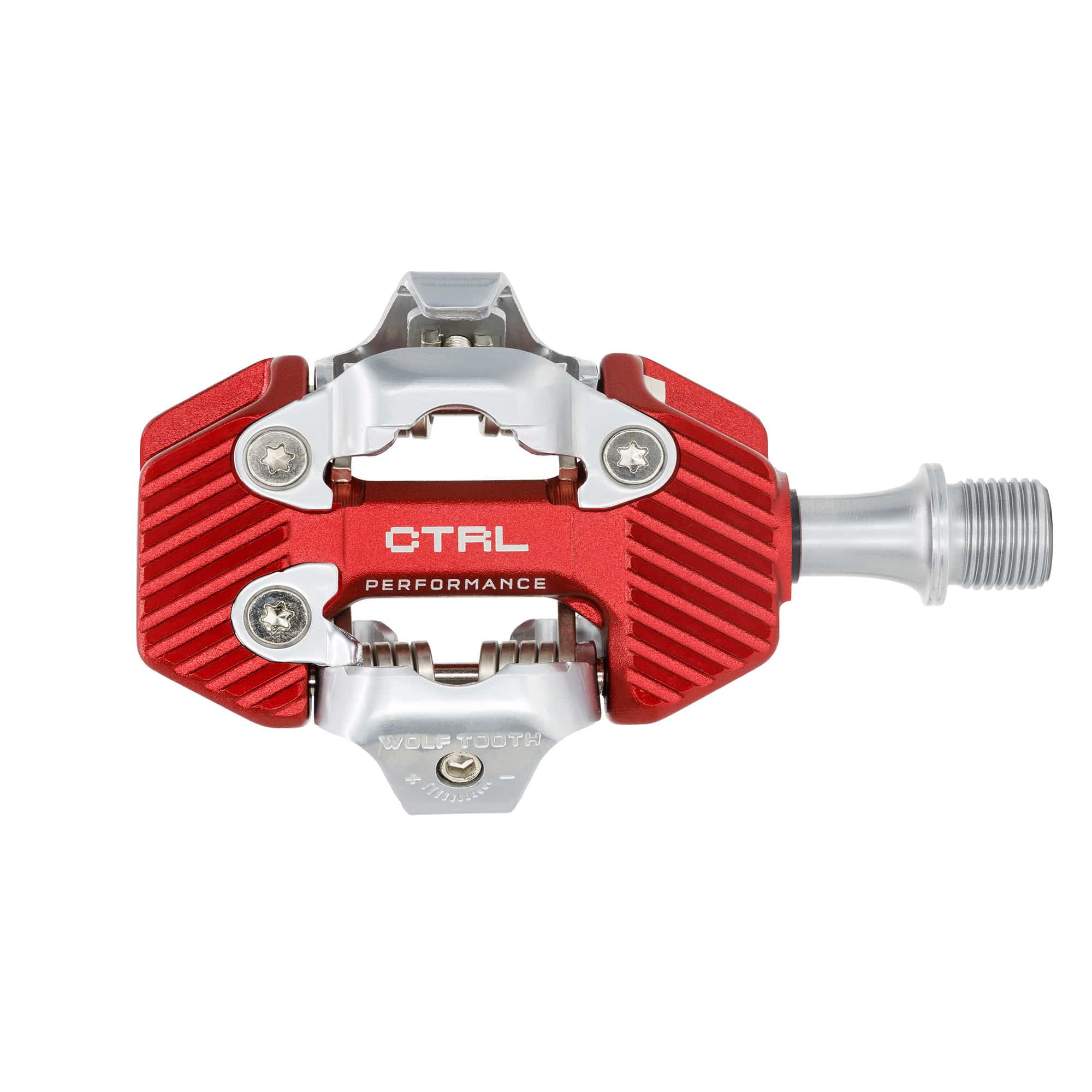

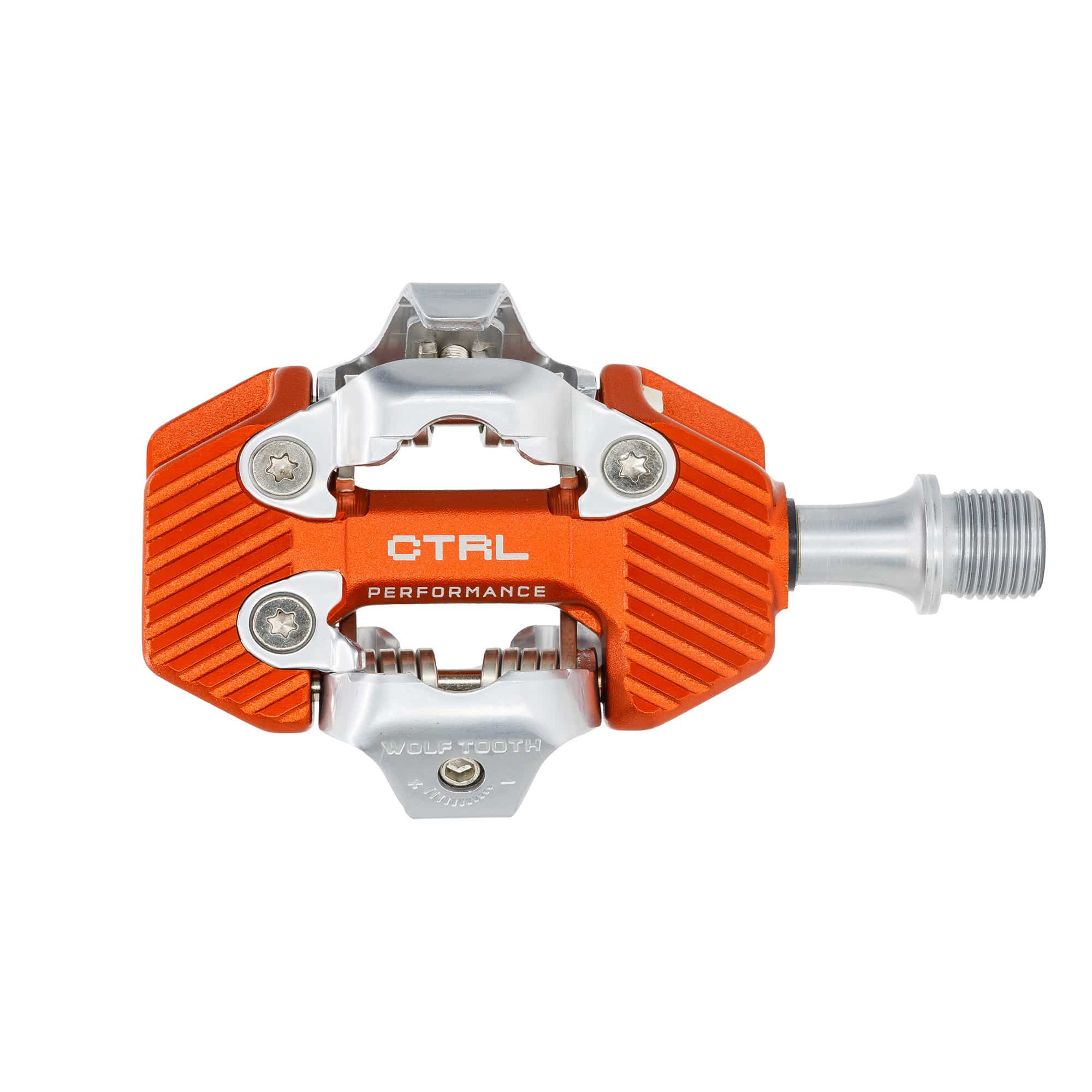

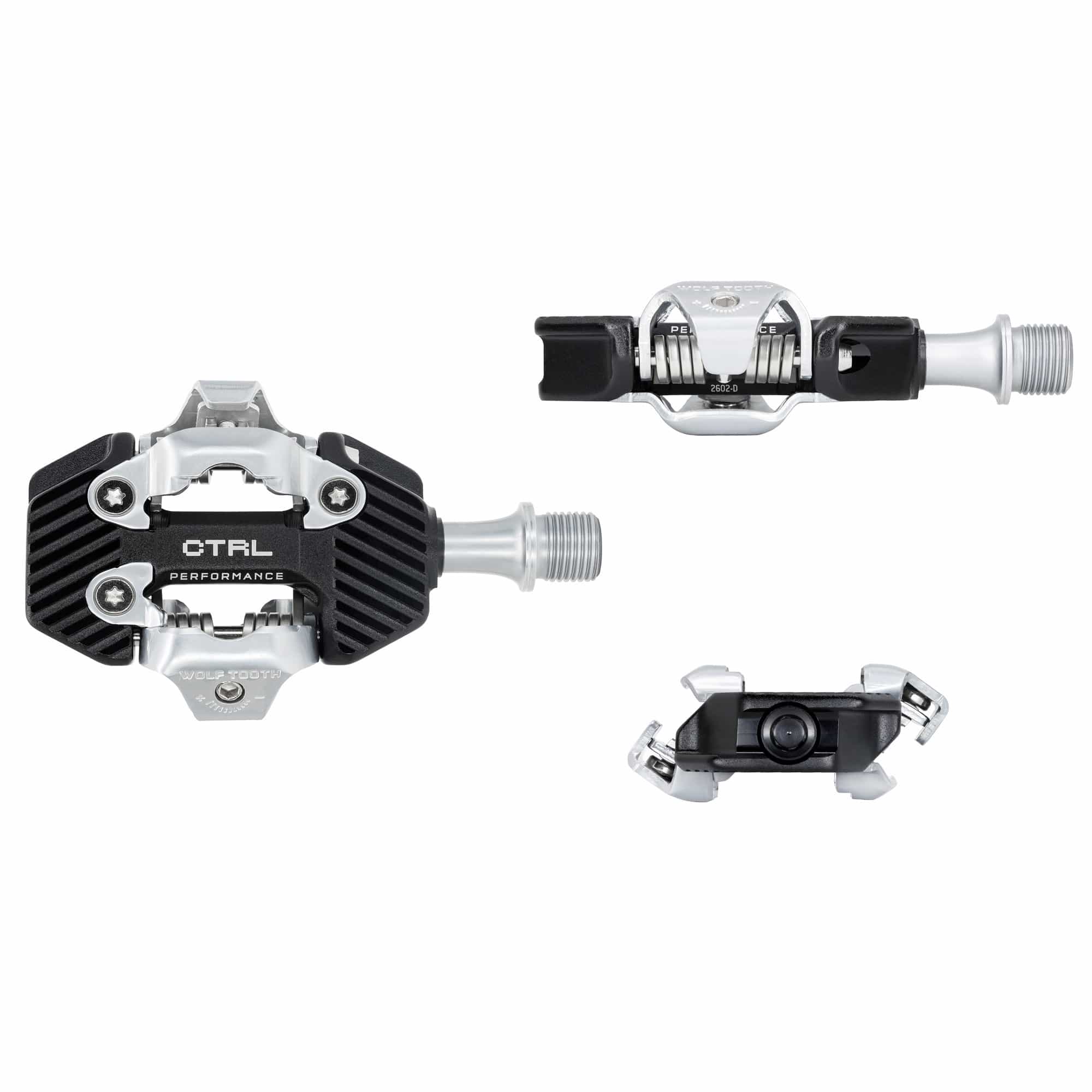

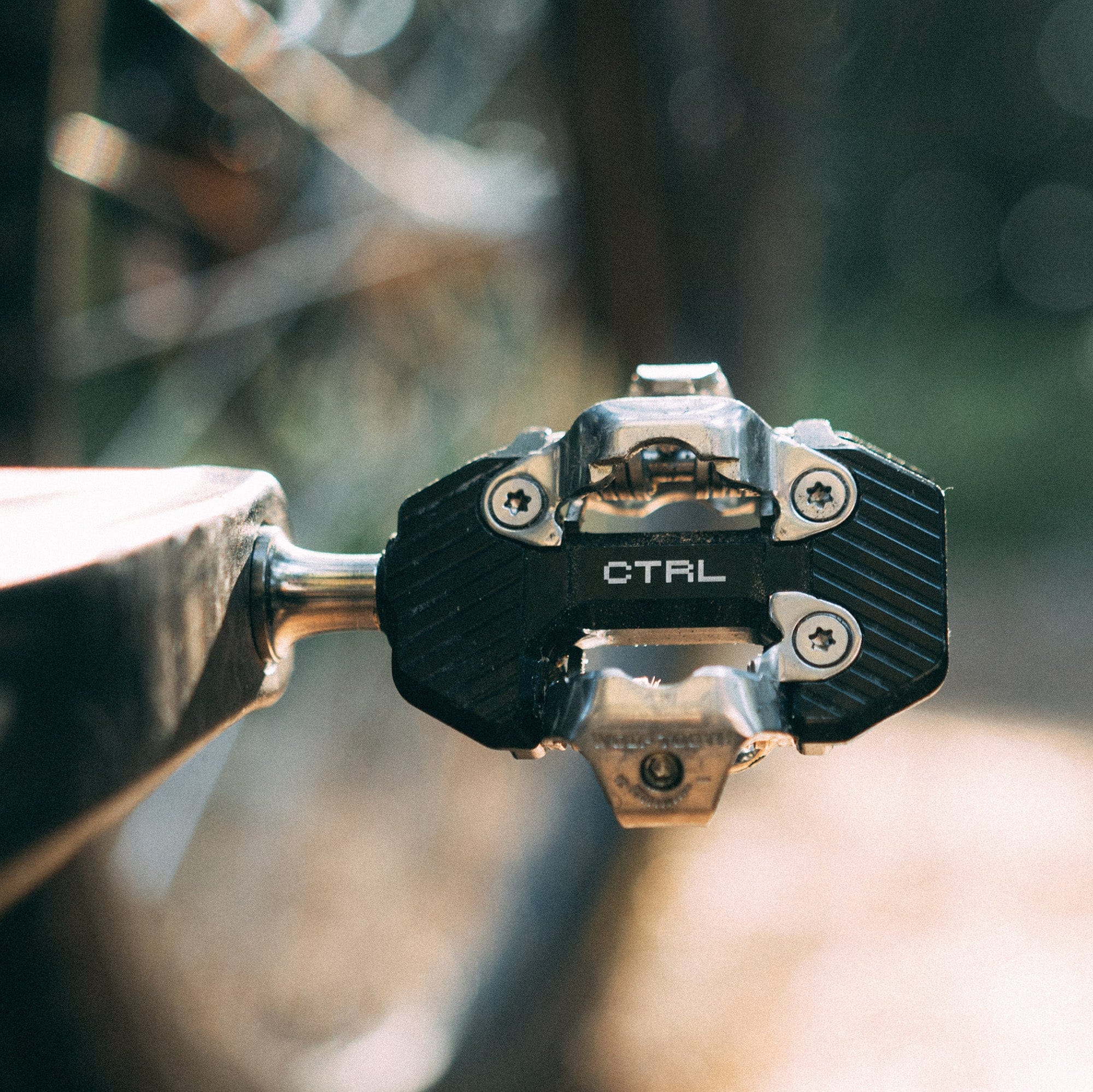

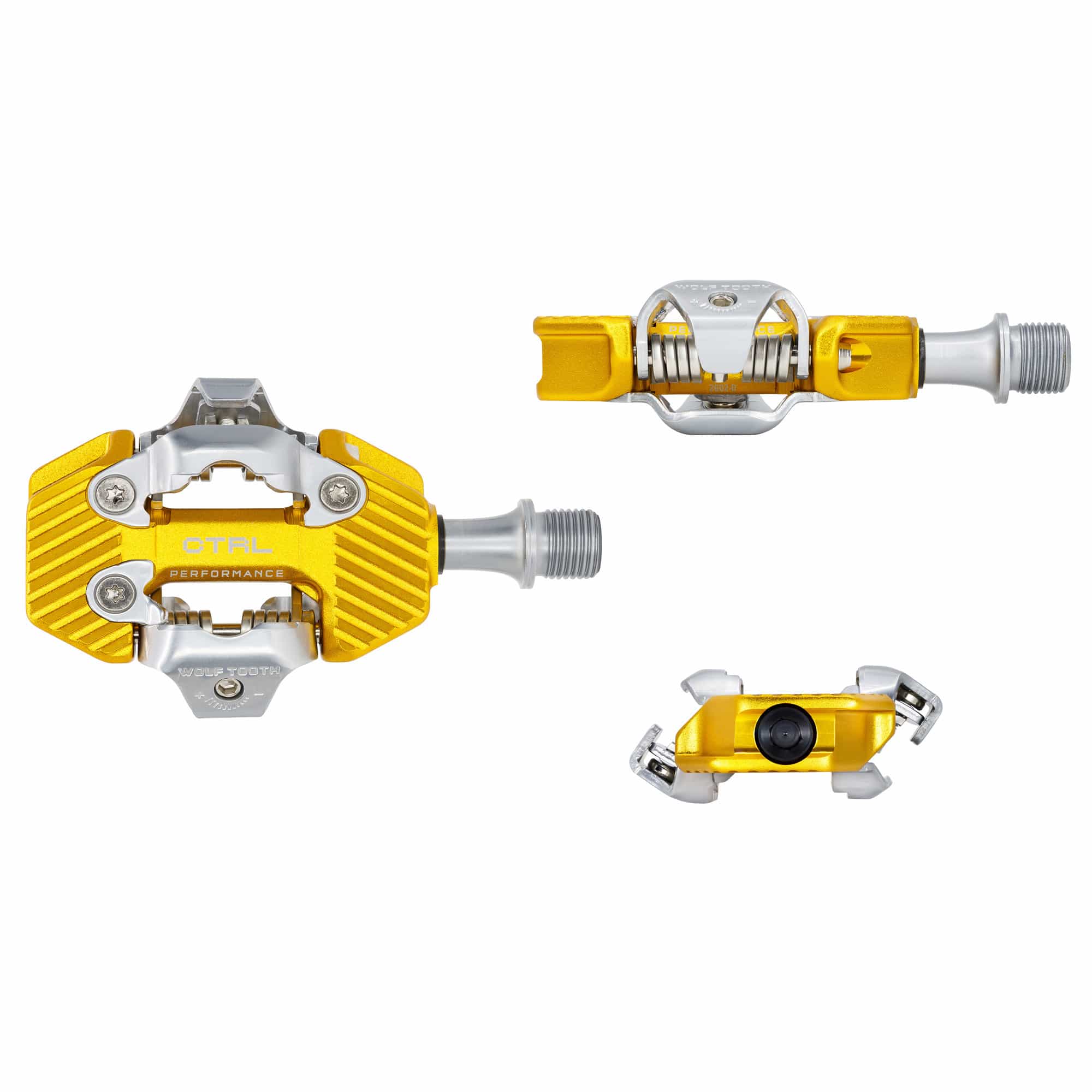

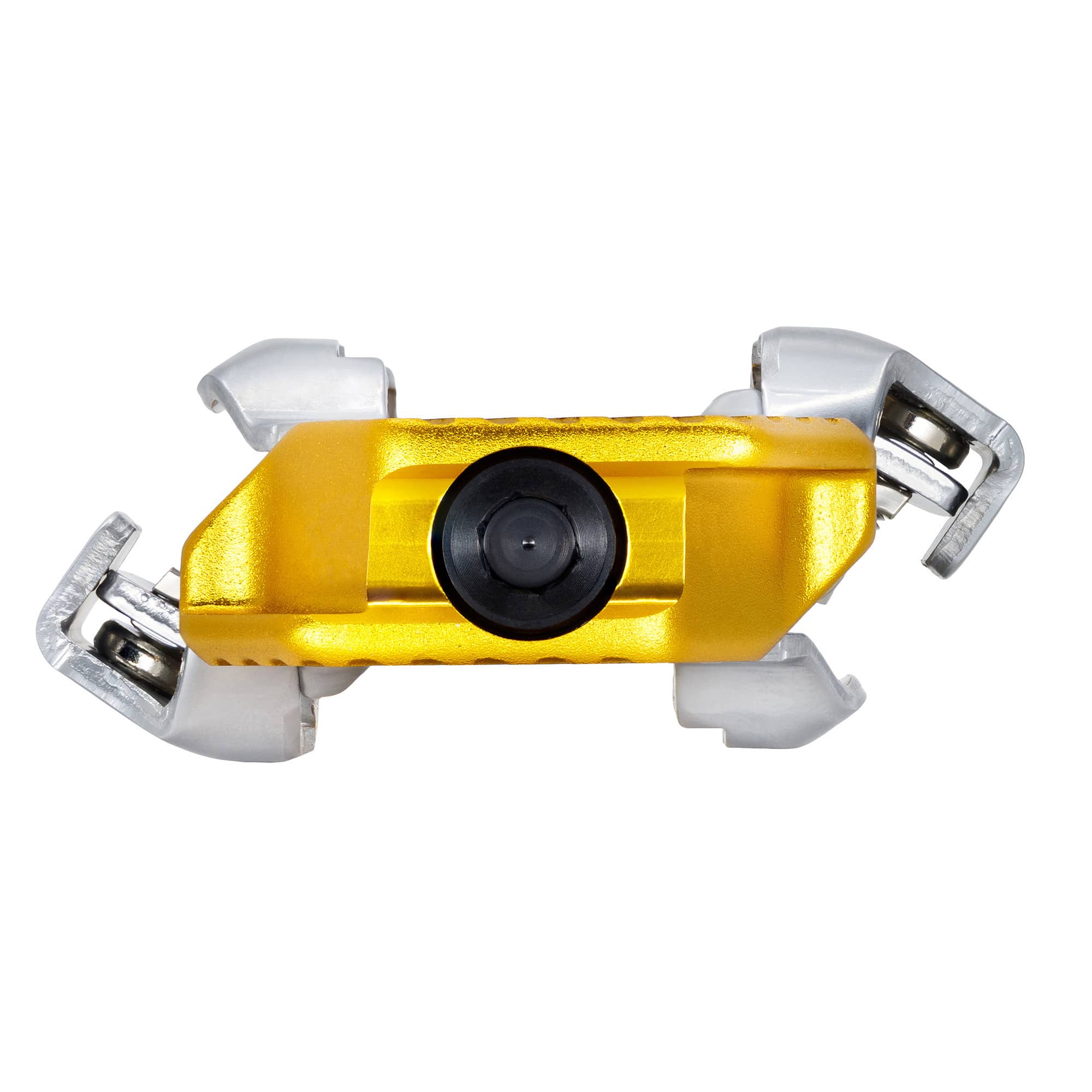

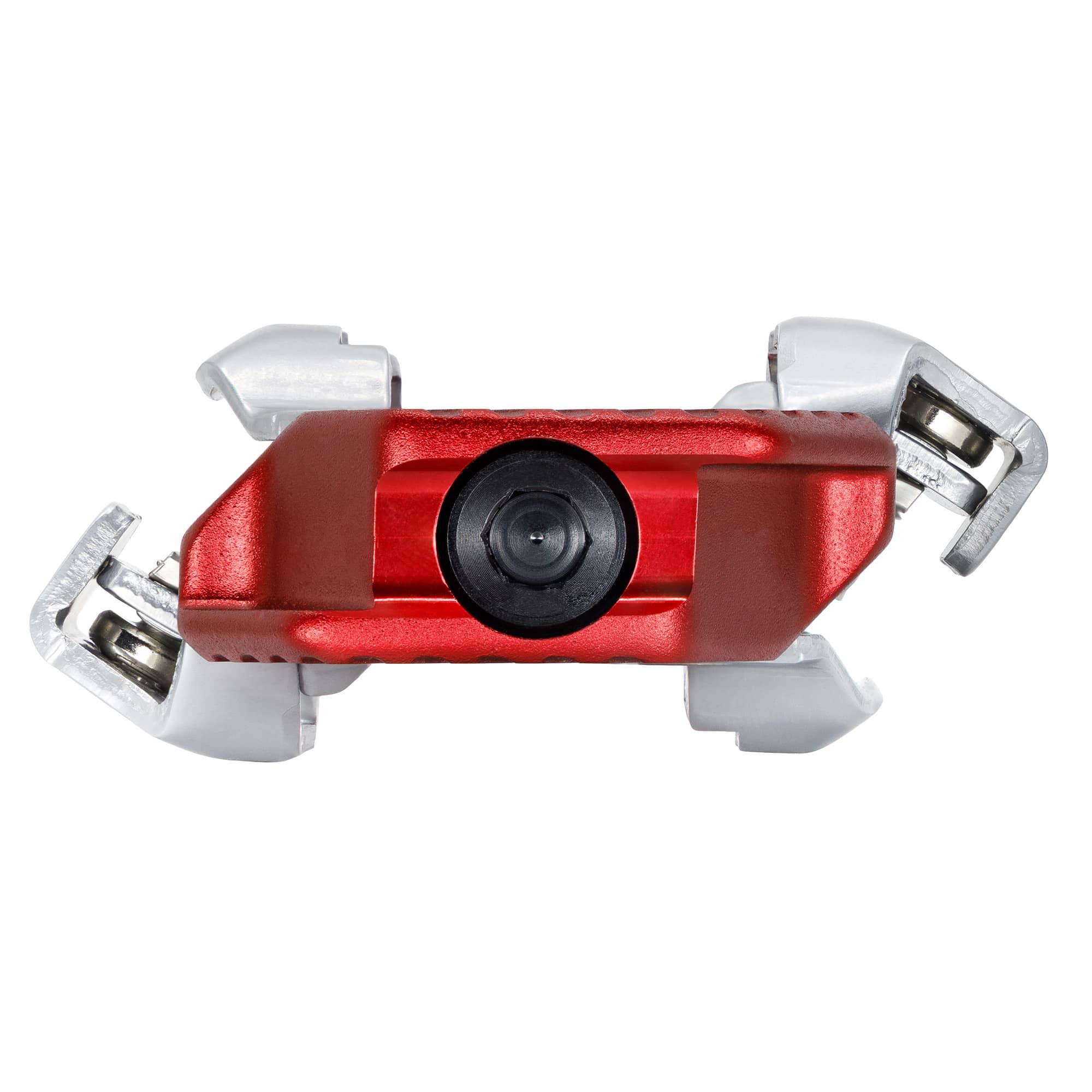

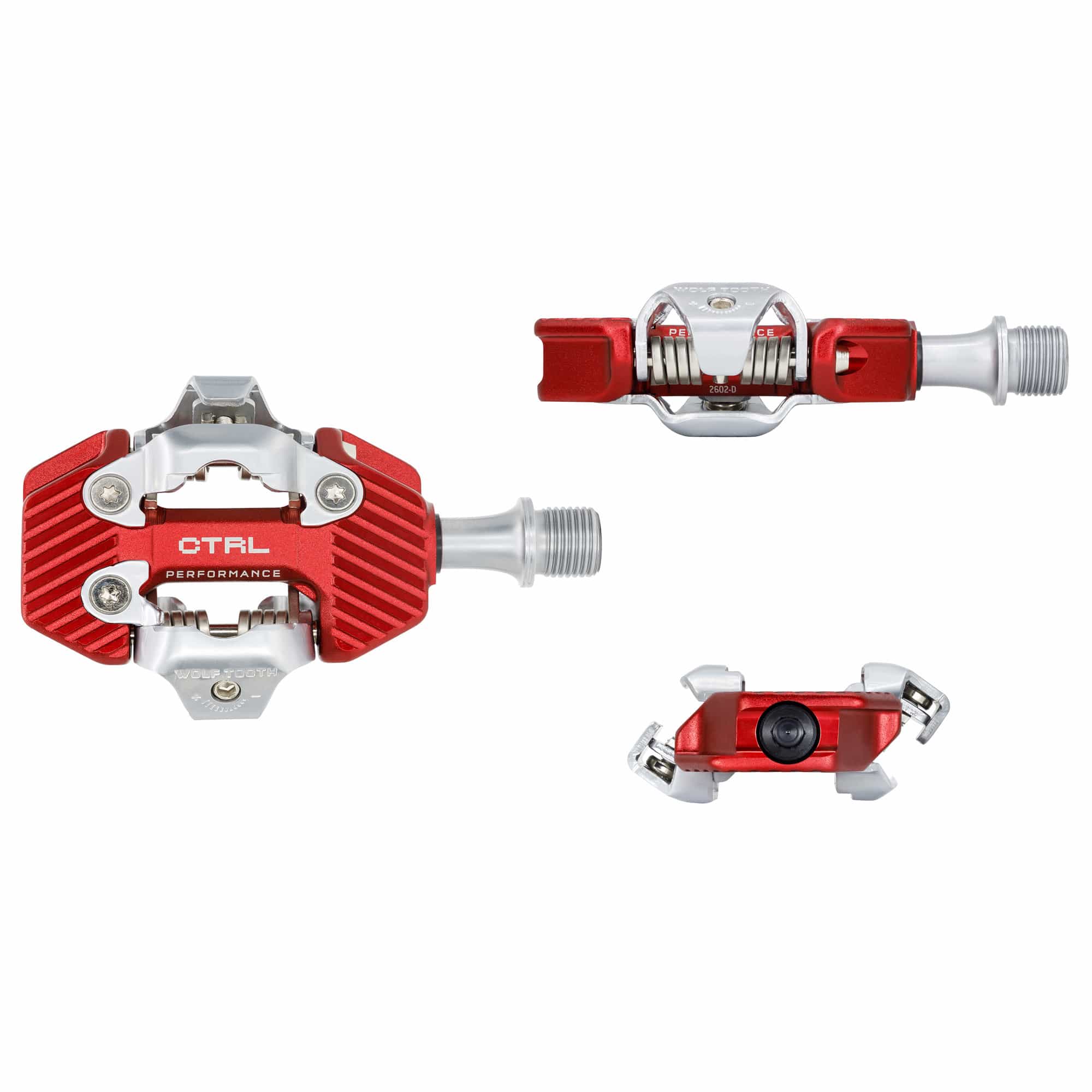

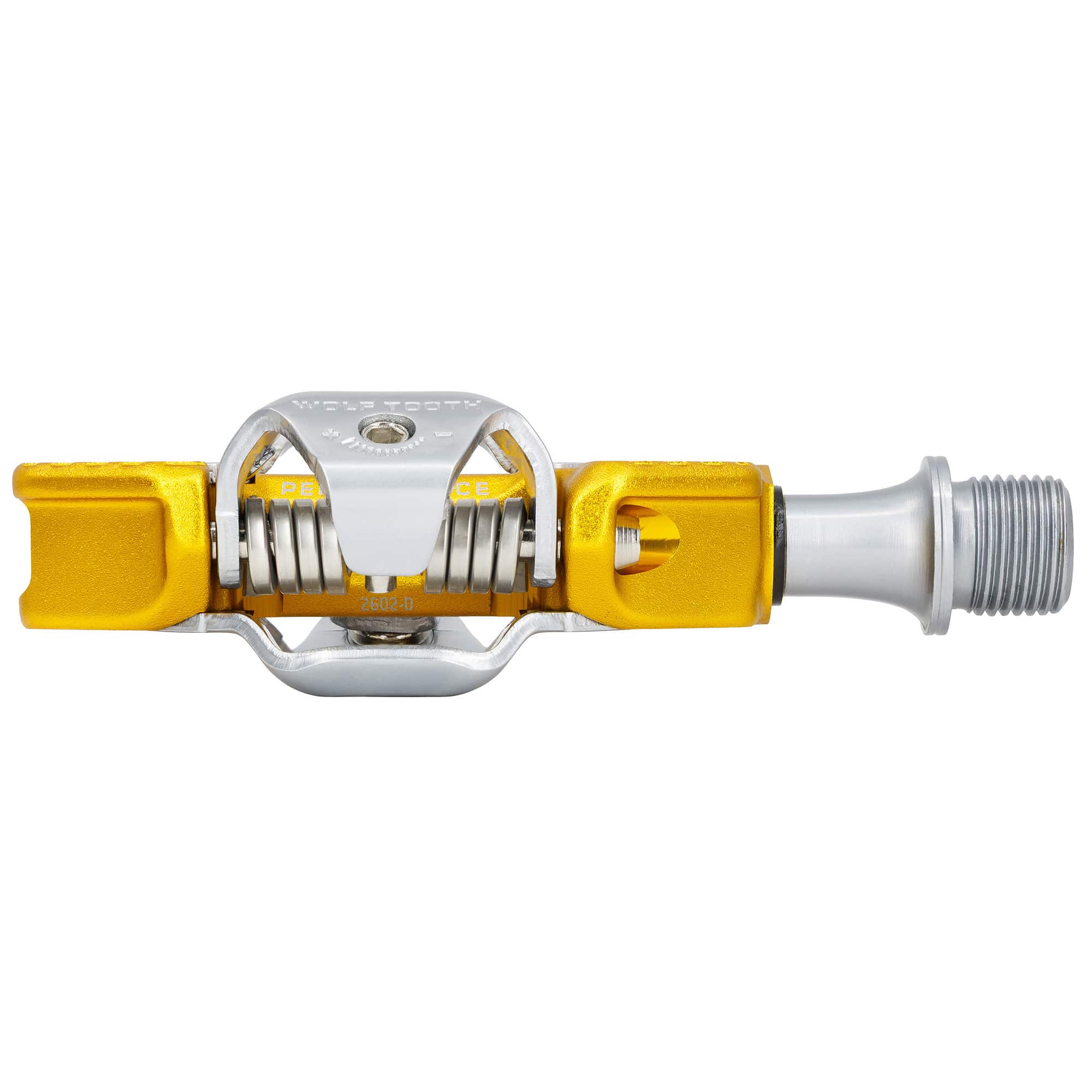

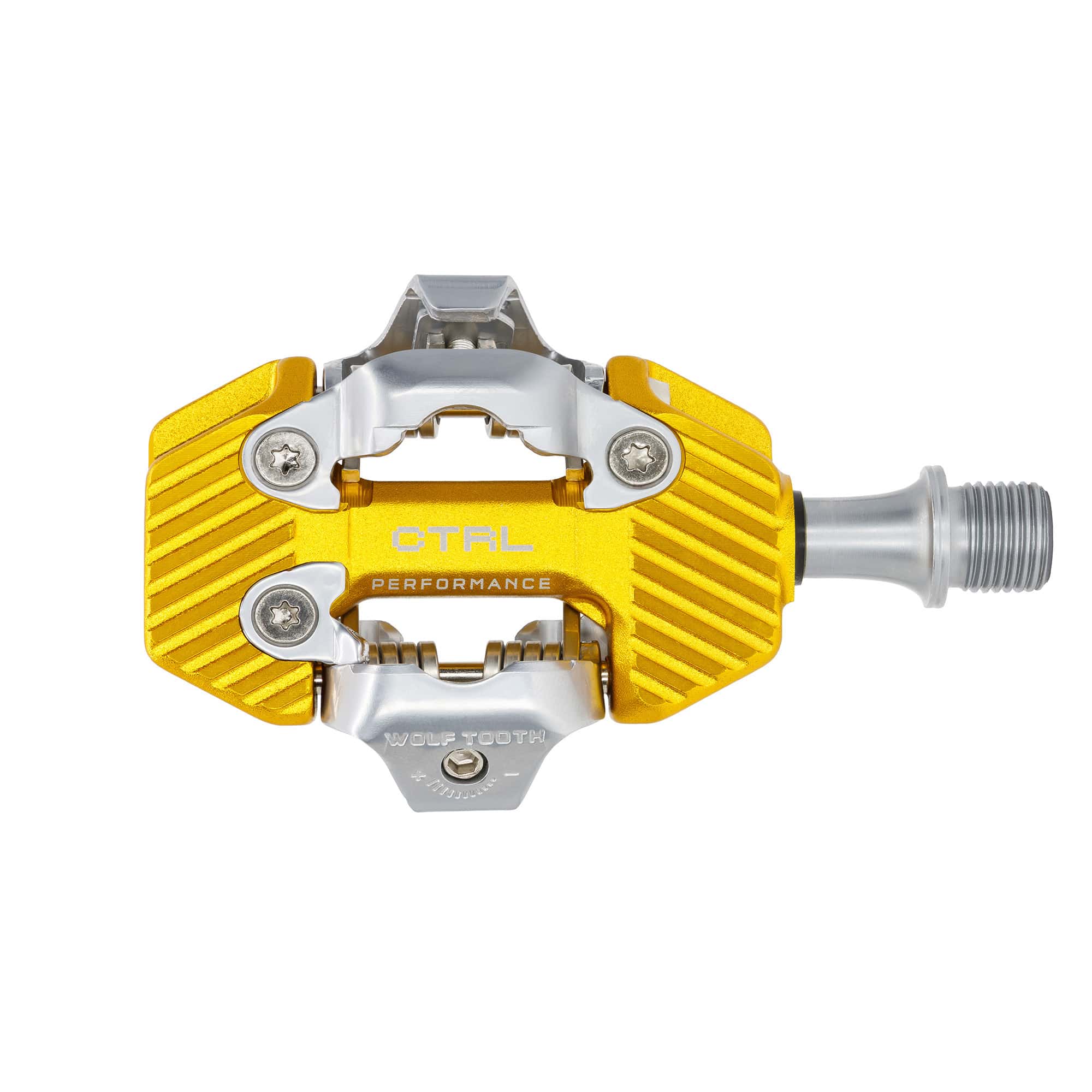

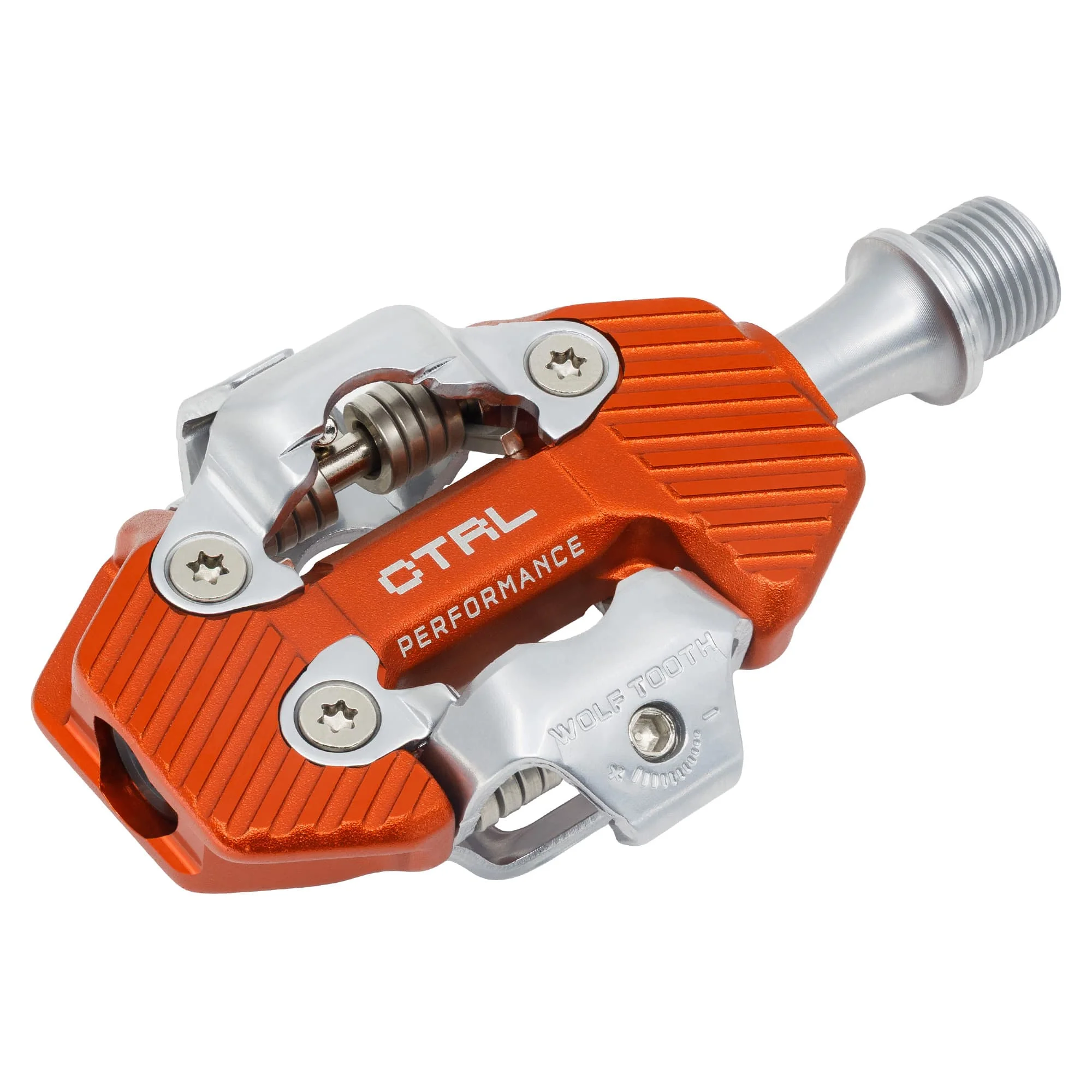

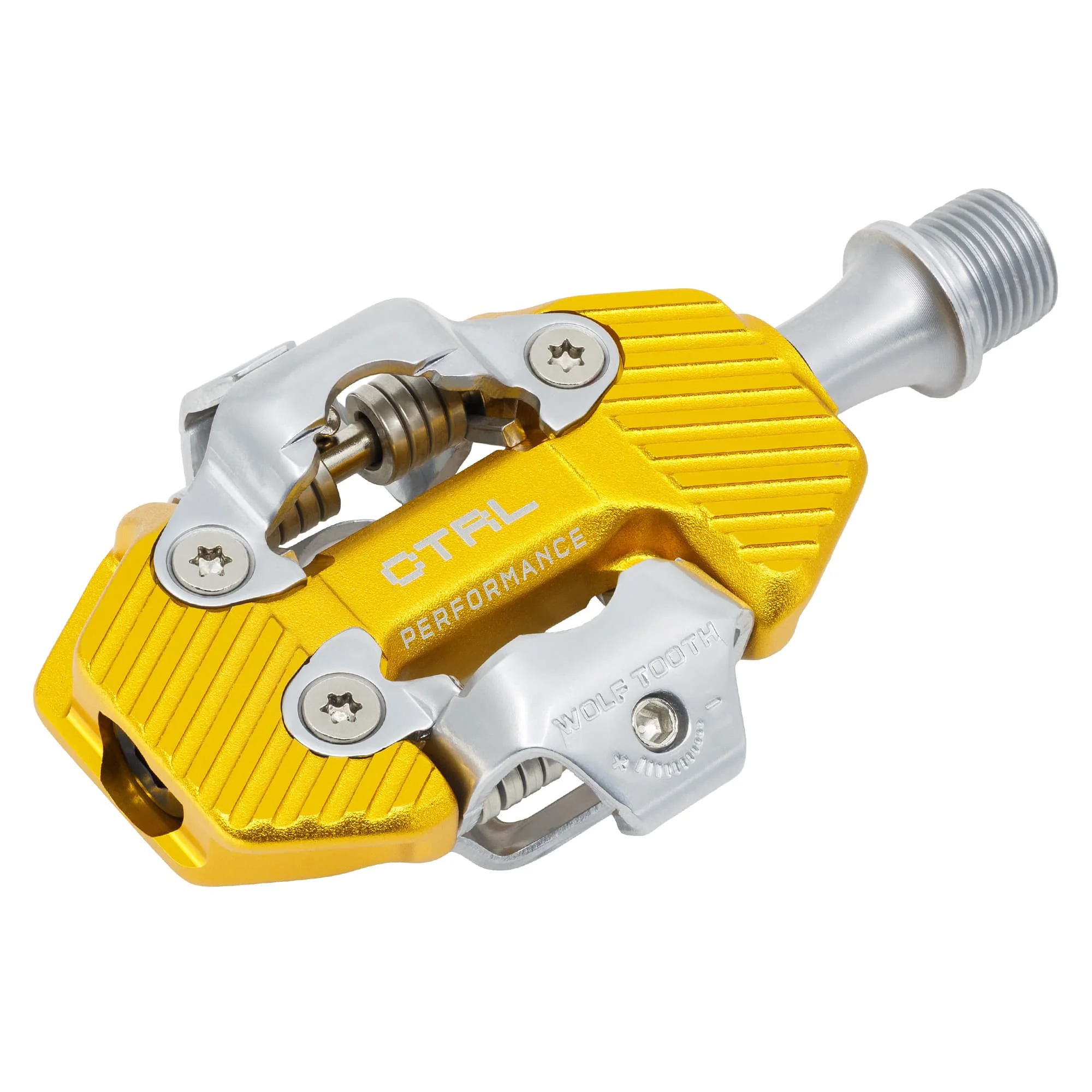

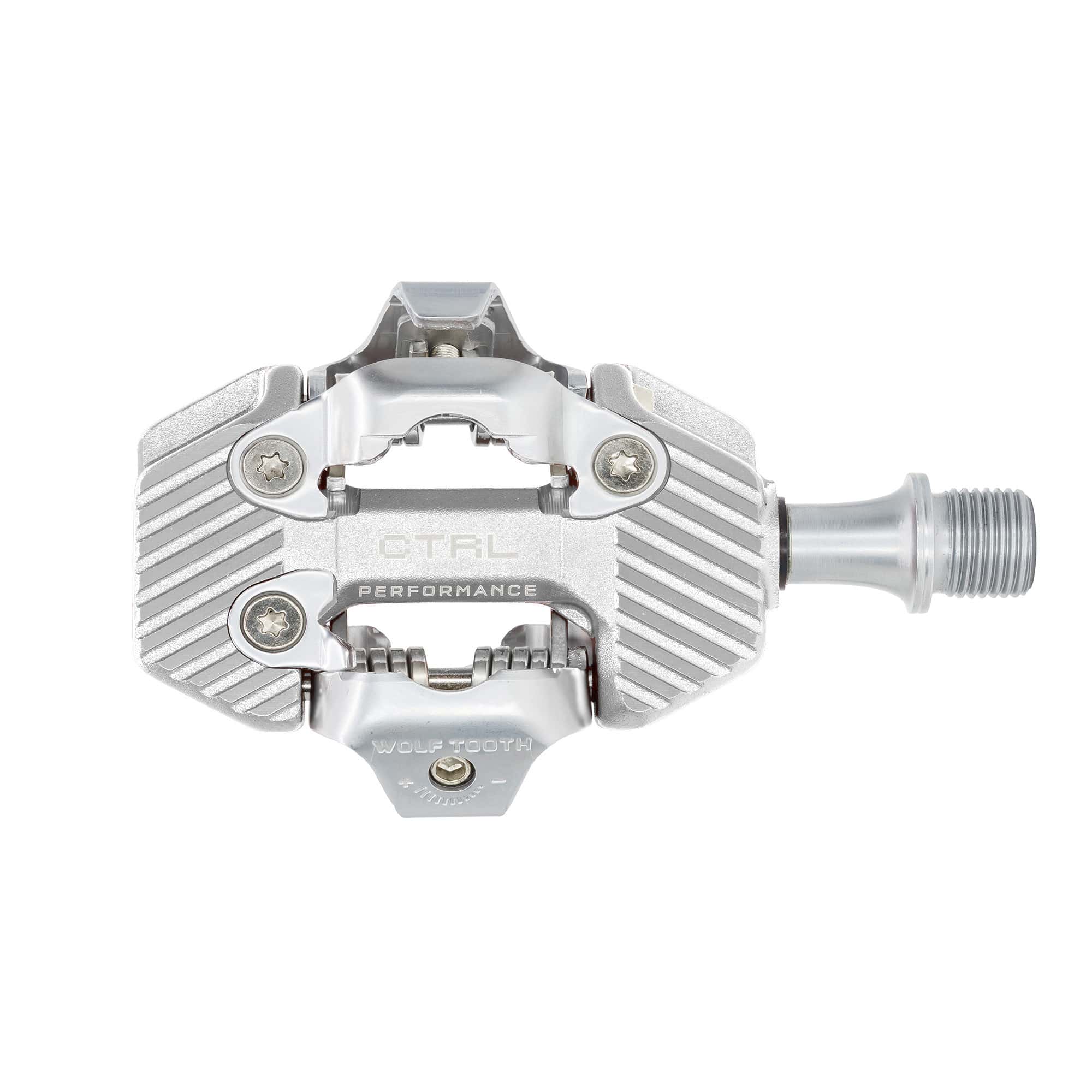

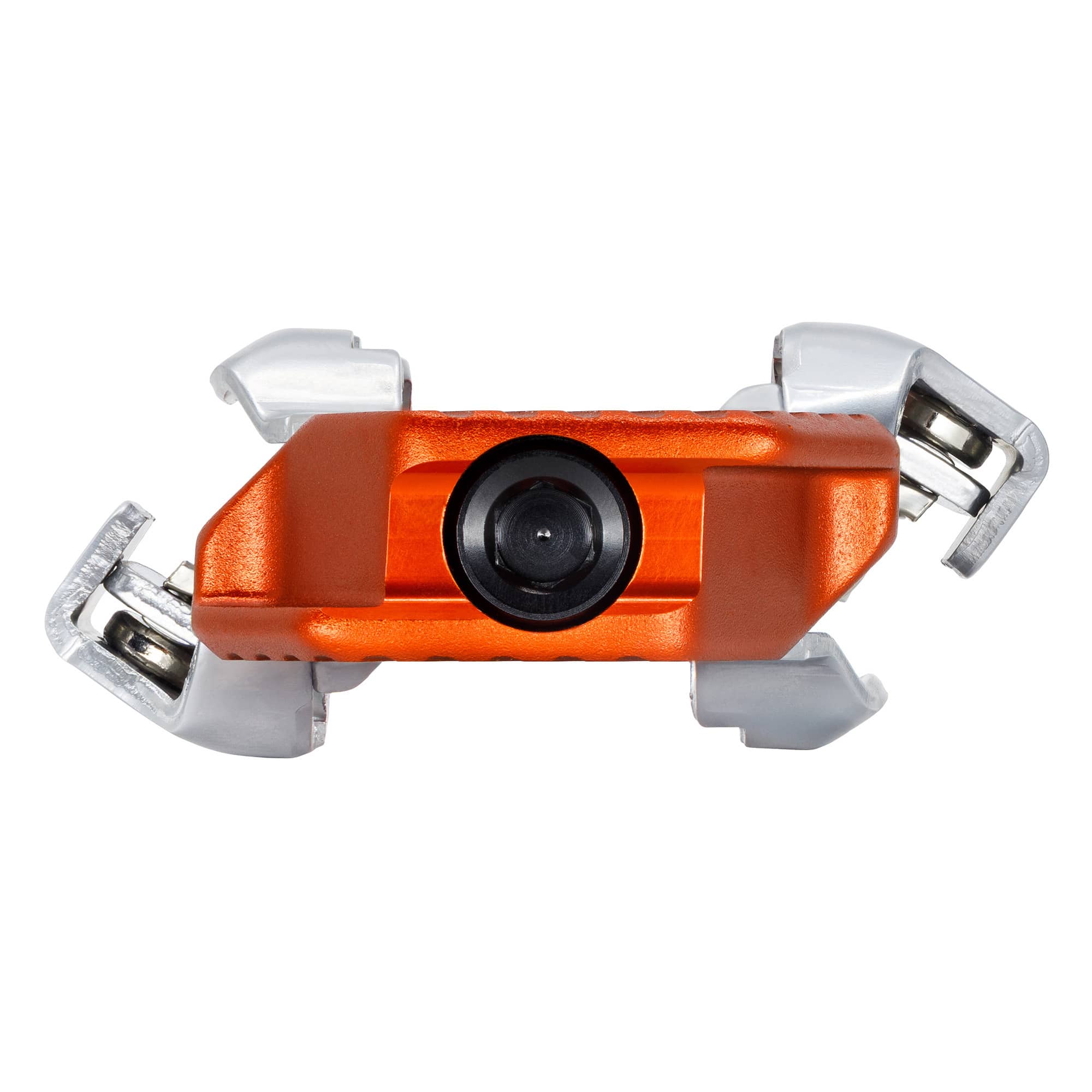

CTRL Performance Trail Clipless Pedal

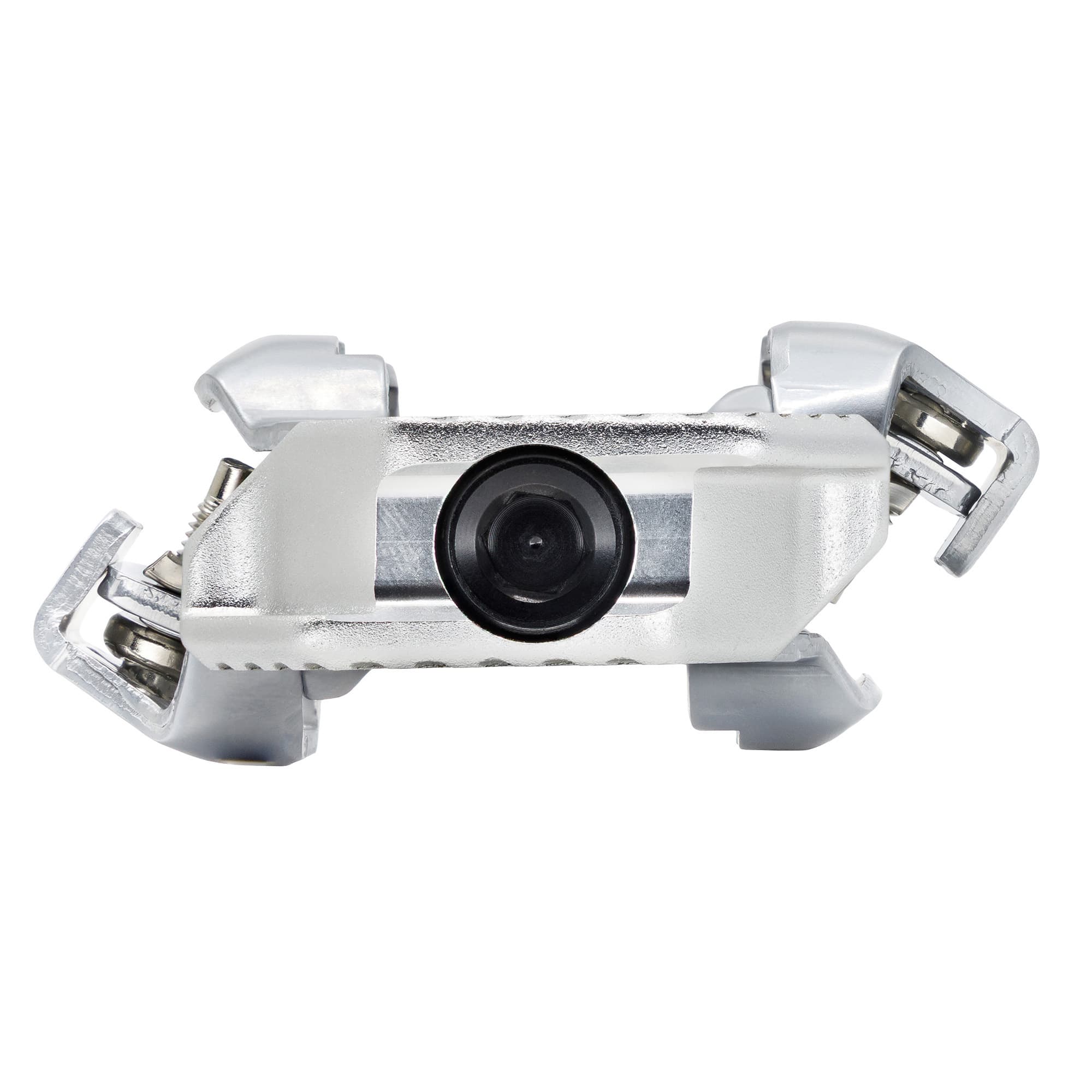

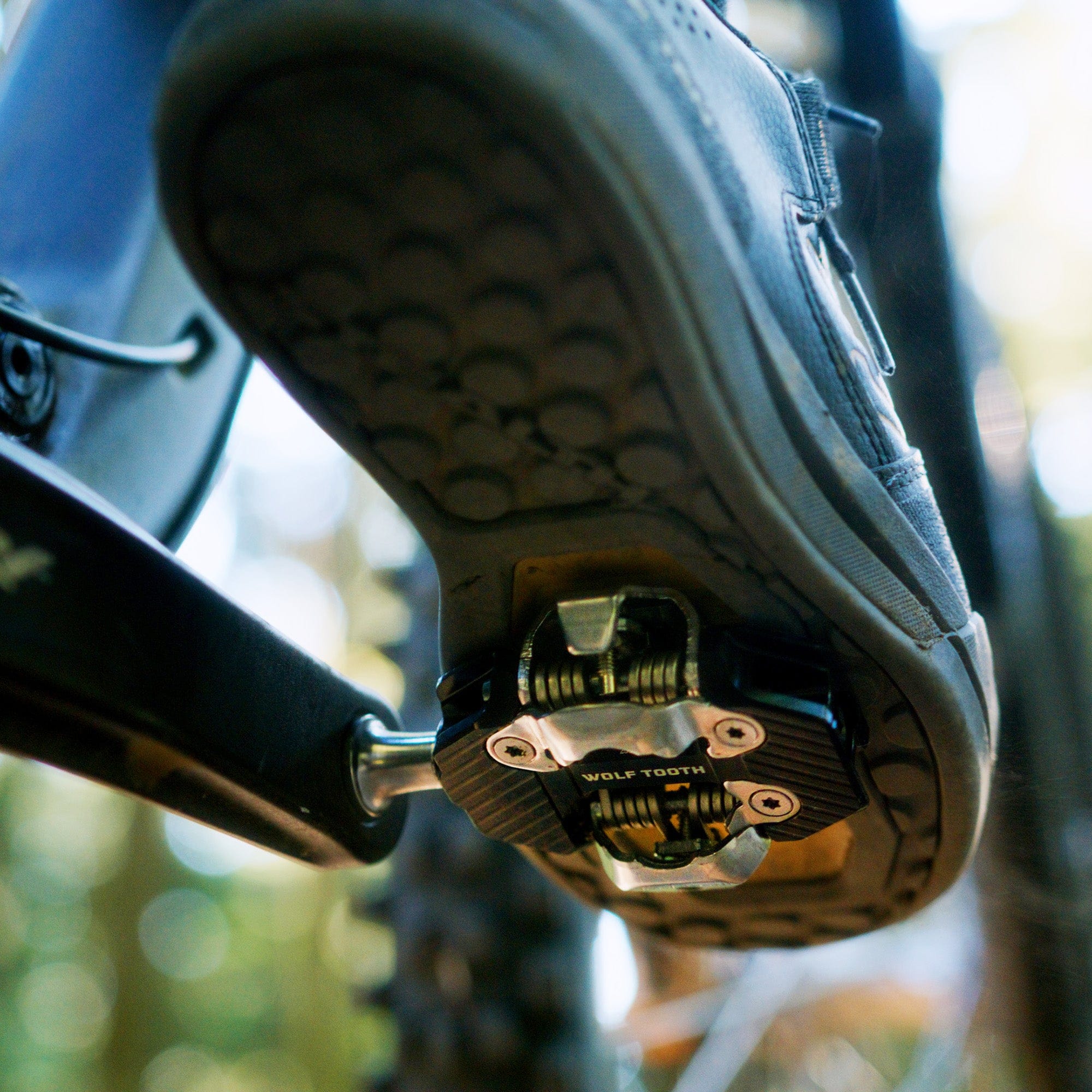

Wolf Tooth CTRL Performance Trail Clipless Pedals are designed for unparalleled control and support for all-mountain riding with flawless clip-in/out performance. No other SPD-compatible trail pedal has a large platform (965 mm²) that contacts and locks in your shoe like this. CTRL Performance Trail Clipless Pedals are light (341 g) and thin (16 mm) compared to other trail mountain bike pedals with an exceptionally low stack height. The thin profile means better cornering clearance, while the open center between the binding cages increases mud shedding ability.

Like most Wolf Tooth components and accessories, replacement parts and service guides are available via Wolf Tooth Right to Repair.

• Thinner than the competition at 16 mm (compared to the Shimano XTR 9220 at 18.2 mm and the Hope TC at 18.2 mm)
• Lighter than the competition at 341 g (compared to Shimano XTR 9220 at 439 g and Hope Trail at 438 g)
• Bigger platform area than the competition at 965 mm² (compared to Shimano XTR 9220 at 883 mm² and Hope Trail at  645 mm²)
• Fixed Q factor of 55 mm
• 5 degrees float | 12 degrees release
• SPD compatible
• Proven axle and bearing design from Waveform Aluminum Pedals
• Designed and tested at Wolf Tooth in Minnesota, USA

Recommended

• All SPD pedals benefit from simple regular maintenance. For best performance apply a drop of oil to the rear binding every 50 hours of riding or if you notice higher than normal clip in/out force. See the service guide for more information.

• Apply  WT-G Precision Bike Grease to the pedal threads before installing pedals on crankarms.


Compatibility

• Compatible with SPD cleats; Wolf Tooth cleats included
• Fits all standard cranks with 9/16-20 tpi right- and left-hand threads – some kid’s bikes and vintage bikes may have smaller incompatible threads.

Tech Specs

Weight: 341 g
Material:
Body: Forged and Post-Machined Aluminum
Axle: Satin nickel-plated chromoly steel

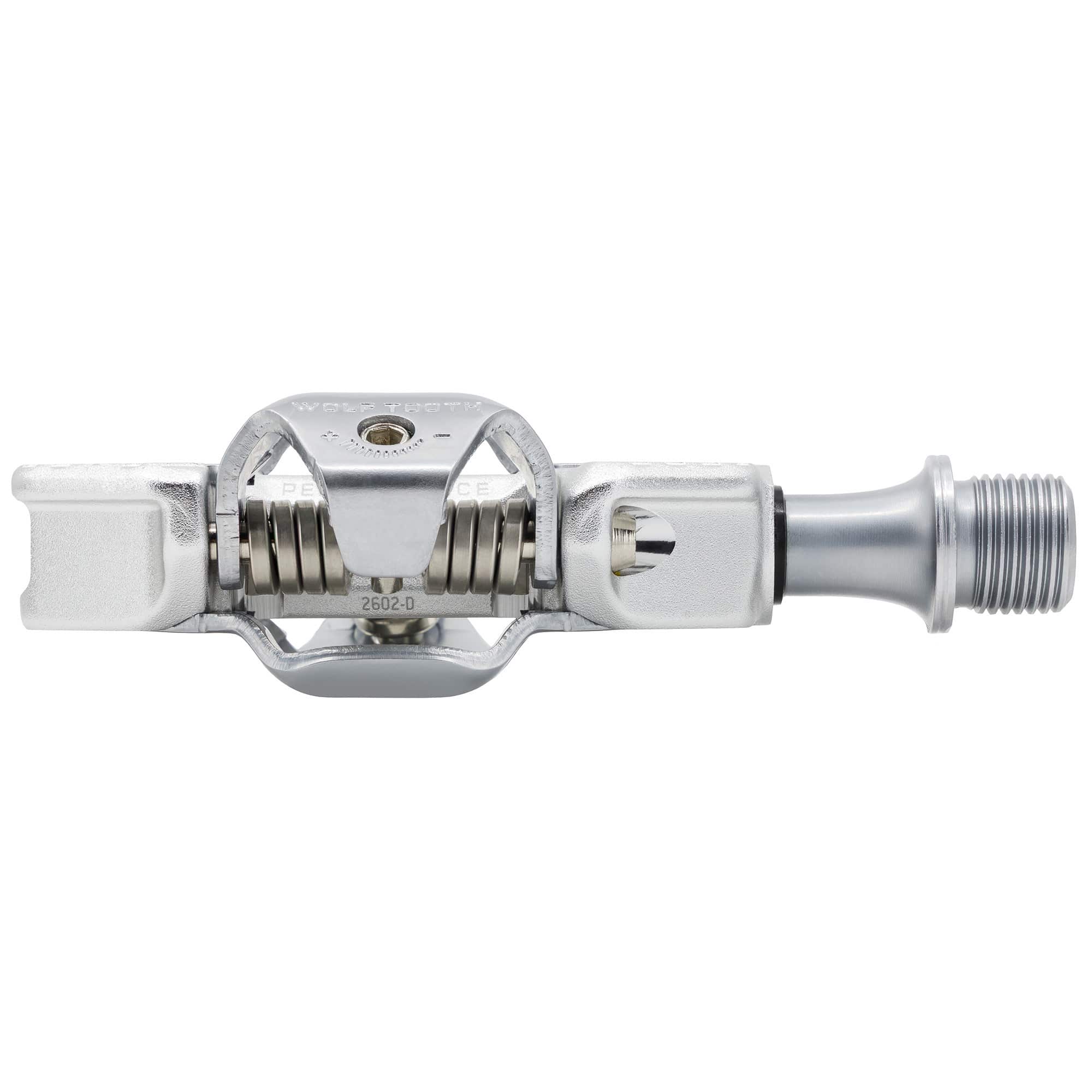

Binding Cage: Hard chrome plated chromoly steel; Hardware: Nickel-plated chromoly steel
Included:  pedals, cleats with shims and bolts

Patent Pending
